Vibratory Plate
TRP90
Características
Smooth Maneuvering On Fresh Asphalt

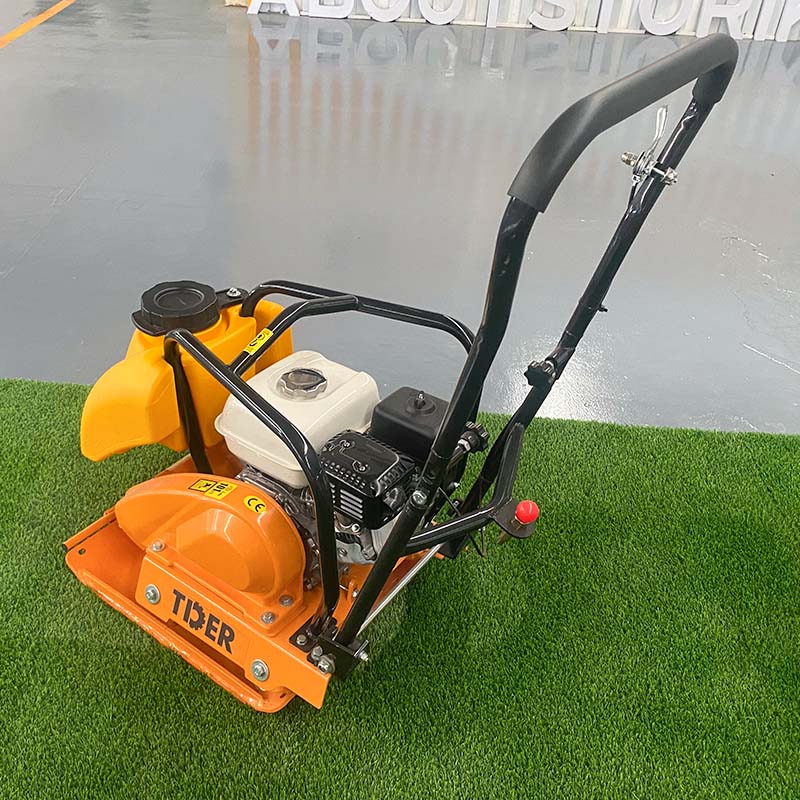

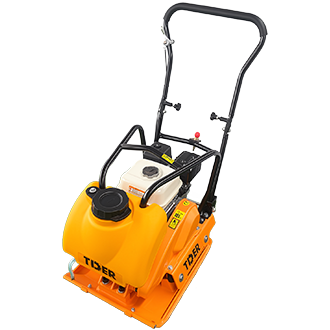

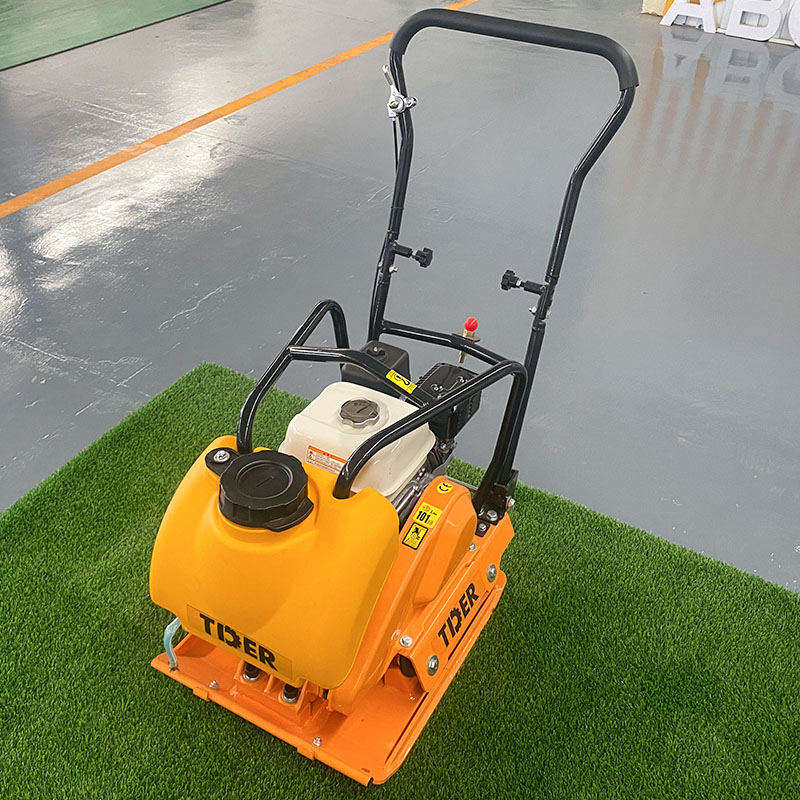

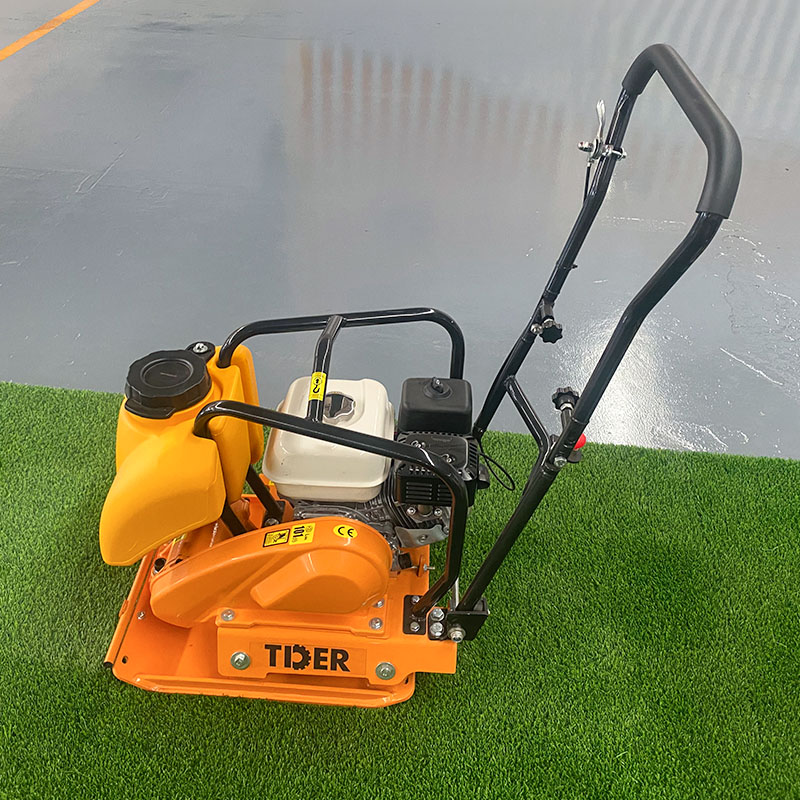

The 90 kg plate compactor is designed for smooth movement and responsive steering on fresh asphalt surfaces. Its balanced operating characteristics make it easier to guide the machine through finishing work while helping operators achieve a clean and even surface.
Clean, Mark-Free Compaction Results
The optimized base plate is designed to deliver a clean compaction finish without leaving unwanted marks on the freshly laid surface. Its well-defined edges also help operators achieve neat results when working close to curbs and other boundaries.
Responsive Guide Handle For Precise Steering
The guide handle responds quickly to steering movements, giving the operator direct control over the machine's direction. This responsive handling makes positioning and turning easier, particularly during detailed finishing work.
Low-Maintenance Gasoline Power
The standard gasoline engine eliminates many maintenance concerns associated with electric equipment, such as dust accumulation around electrical components or issues related to unsuitable lubricants. This helps reduce routine maintenance requirements and supports lower operating costs over the machine's service life.
Optimized Base Plate For Consistent Compaction
The base plate has been optimized to support effective and consistent compaction across the working area. Its practical shape and clearly defined edges help the machine deliver a smooth finish while making it easier to work accurately along curbs and confined edges.
PRESUPUESTO
| Engine Brand | — | HONDA |
| Engine Model | — | GX160 |
| Engine Type | — | Single-Cylinder, Air-Cooled, Four-Stroke |
| Number of Cylinders | — | 1 |
| Engine Power | hp | 5.5 |
| Operating Weight | kg | 90 |
| Excitation Frequency | Hz | 92 |
| Exciting Force | kN | 15 |
| Compaction Depth | cm | 30 |
| Travel Speed | m/min | 23 |
| Working Efficiency | ≈/h | 405 |
| Plate Size | cm | 53 × 50 |
| Working Dimensions | cm | 110 × 50 × 85 |
*NOTA: Las especificaciones y configuraciones están sujetas a cambios debido a las continuas actualizaciones y mejoras del producto sin previo aviso. Toda la información es solo de referencia y algunas características son opcionales. Comuníquese con nuestro equipo de ventas internacionales para confirmar. Las especificaciones y configuraciones finales estarán sujetas al contrato oficial firmado por ambas partes.
