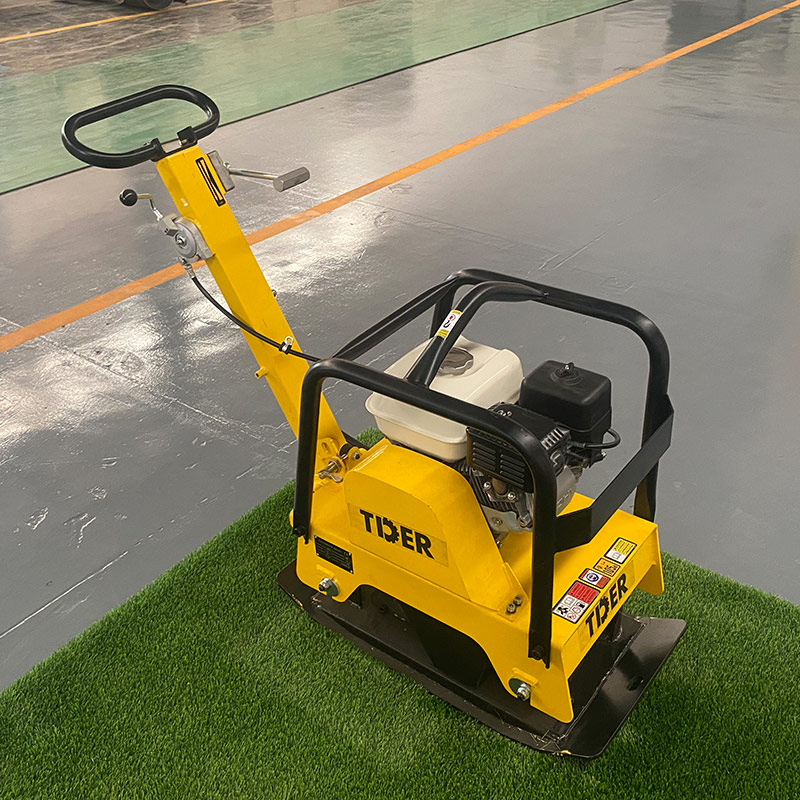

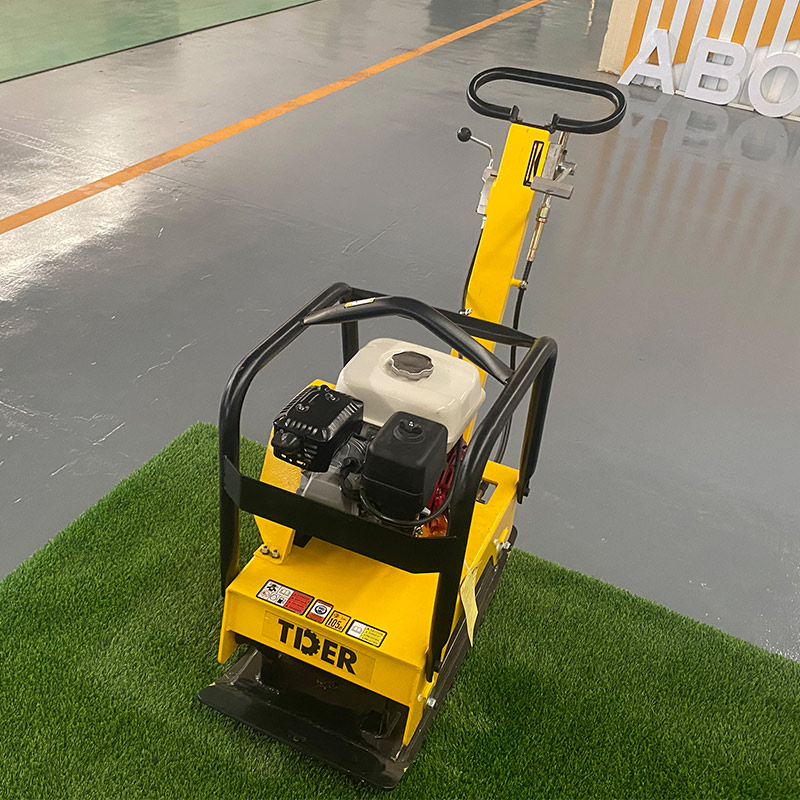

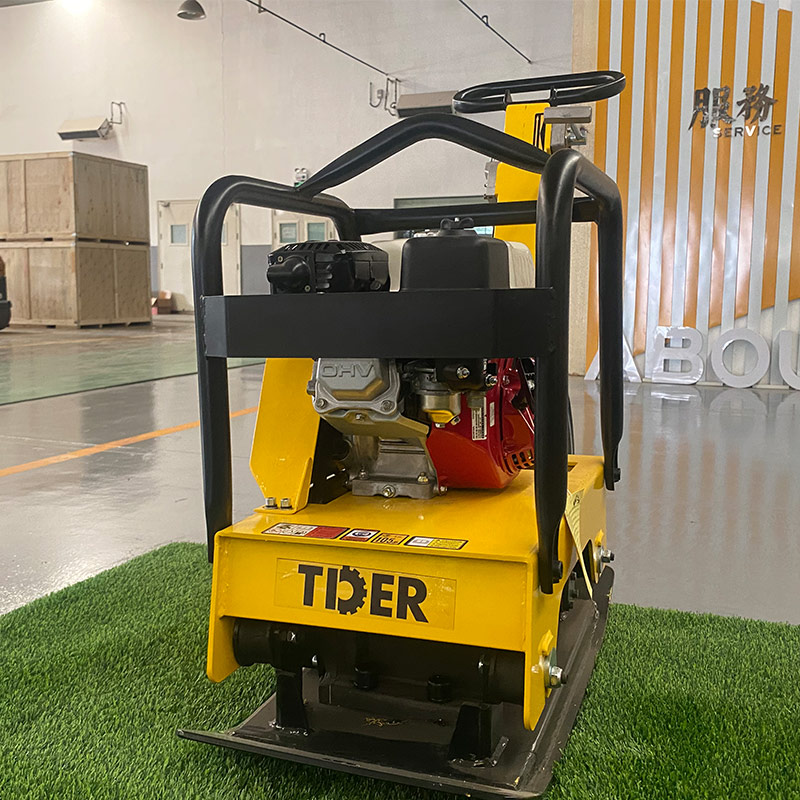

Vibratory Plate
TRP160
Características
Protective Frame Helps Reduce Repair Costs
The robust protective frame shields the engine and water tank from accidental impacts and damage during daily operation. By protecting these key components, the TRP160 helps reduce the risk of costly repairs and supports more reliable machine availability on the jobsite.
Rounded Base Plate Edges For A Smoother Asphalt Finish
The optimized base plate features rounded edges that help minimize material buildup when the machine is turned. This allows the TRP160 to move more smoothly across asphalt and helps produce a cleaner, more uniform surface finish.
Heavy-Duty Base Plate Built For Long Service Life
The base plate is manufactured from highly durable materials to withstand repeated compaction work. Its robust construction provides strong wear resistance and helps maintain reliable performance over a long working life.
High Travel Speed For Greater Working Efficiency
The TRP160 combines its 160 kg operating weight with a fast travel speed to improve productivity during compaction work. Faster movement between working areas helps operators complete larger sections more efficiently while reducing unnecessary repositioning time.
PRESUPUESTO
| Engine Brand | — | HONDA |
| Engine Model | — | GX270 |
| Engine Type | — | Single-Cylinder, Air-Cooled, Four-Stroke |
| Number of Cylinders | — | 1 |
| Engine Power | hp | 9 |
| Operating Weight | kg | 160 |
| Excitation Frequency | Hz | 67 |
| Exciting Force | kN | 30.5 |
| Compaction Depth | cm | 50 |
| Travel Speed | m/min | 27 |
| Working Efficiency | m³/h | 500 |
| Plate Size | cm | 73 × 37 |
| Working Dimensions | cm | 125 × 37 × 93 |
*NOTA: Las especificaciones y configuraciones están sujetas a cambios debido a las continuas actualizaciones y mejoras del producto sin previo aviso. Toda la información es solo de referencia y algunas características son opcionales. Comuníquese con nuestro equipo de ventas internacionales para confirmar. Las especificaciones y configuraciones finales estarán sujetas al contrato oficial firmado por ambas partes.
