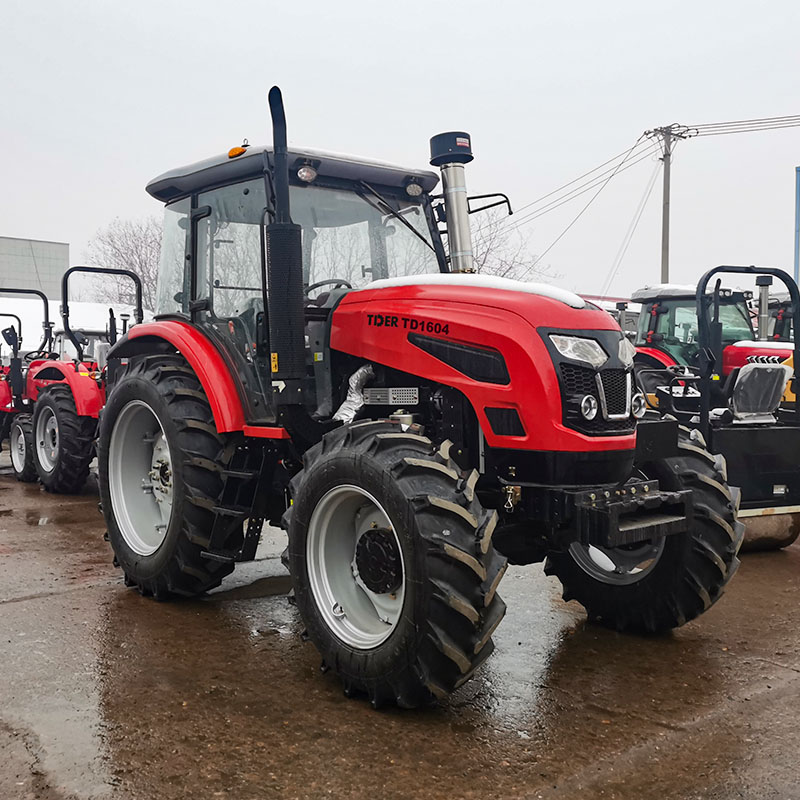

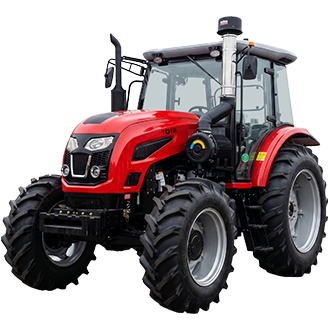

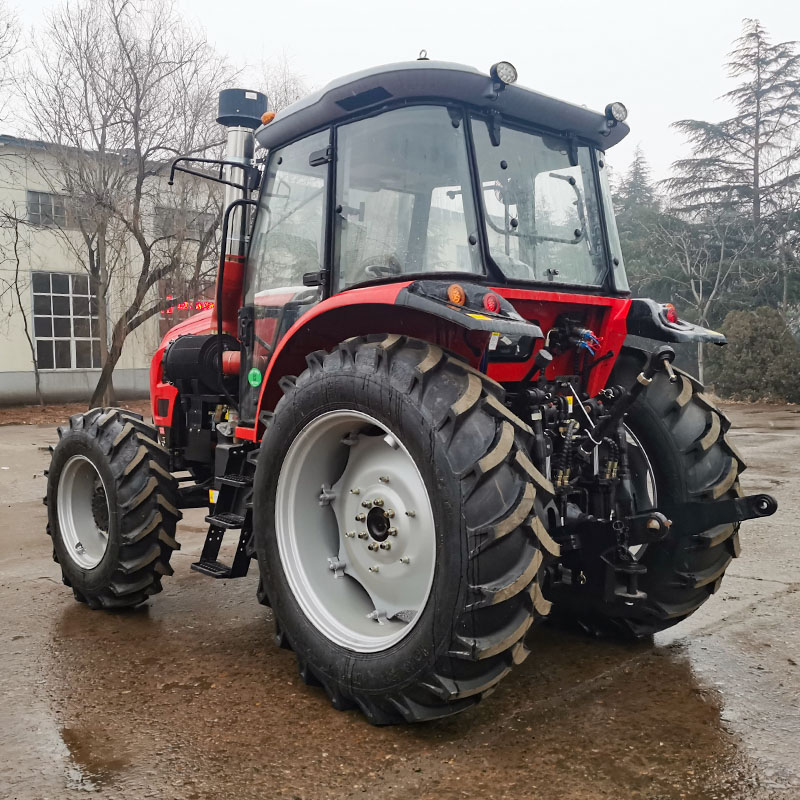

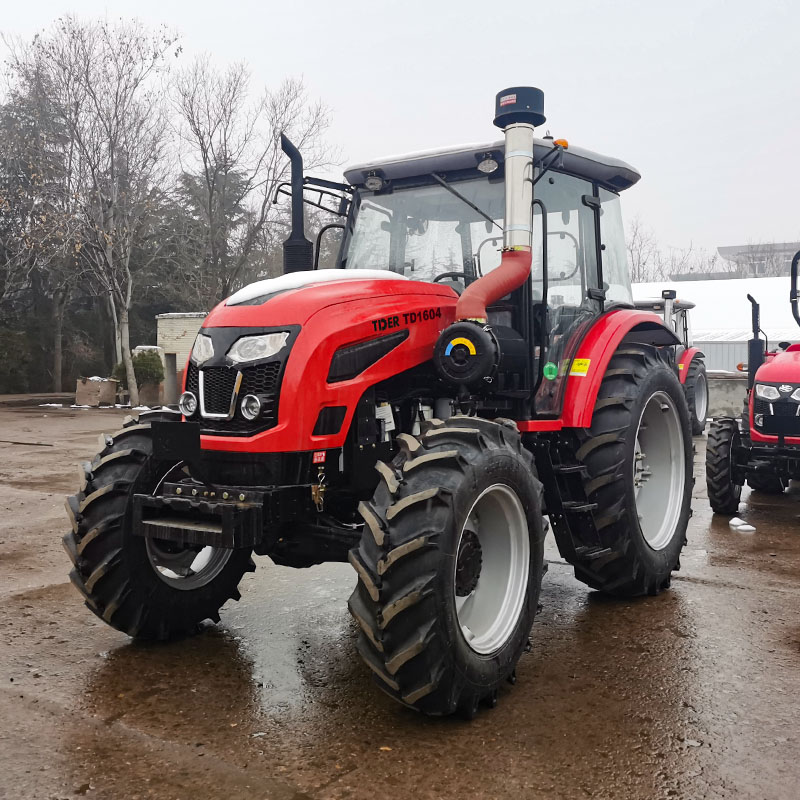

160HP Tractor
TD1604
Características
Maximum Power Output for Professional Agricultural Operations
Built with a 160HP Dongfanghong Stage III four-cylinder high-pressure common rail engine, the TD1604 delivers outstanding power reserve and strong torque output for large-scale farming and demanding field applications. The advanced fuel injection system improves combustion efficiency, reduces fuel consumption, and provides stable performance during intensive operations. The multi-mode power control switch allows operators to optimize engine performance according to different working conditions, achieving a better balance between power demand and fuel economy.
Optimized for Heavy Pulling Applications
The TD1604 is engineered to handle high-load operations with confidence. Its advanced drivetrain configuration and optimized weight distribution provide strong pulling capability when working with large implements, while the front and rear cast iron counterweights improve weight balance and reduce wheel slip, helping operators achieve efficient performance in demanding field applications.
Ready for Large-Scale Implement Applications
With full hydraulic output, two hydraulic outlets, and a dual-cylinder forced hydraulic lift system, the TD1604 is designed to handle larger and more demanding implements. The independent hydraulic circuit improves system stability and cleanliness, while the full hydraulic steering system ensures smooth maneuverability even under heavy working conditions.
Advanced Protection and Operator Experience
The TD1604 is equipped with a hydraulic-assisted 14-inch dual-action clutch, providing smoother engagement and easier operation. The KA pre-filter and Donaldson air filter enhance engine protection in dusty environments, while the intelligent instrument panel with fault code display helps operators monitor machine status efficiently. The luxury cab with soft interior trim, radio, and heating & cooling air conditioning provides a comfortable workspace for extended operation.
PRESUPUESTO
| Drive Type | — | 4WD |
| Overall Dimensions – Length | mm | 5750 |
| Overall Dimensions – Width | mm | 2320 |
| Overall Dimensions – Height | mm | 3210 |
| Wheelbase | mm | 2280 |
| Front Wheel Tread | mm | 1912 |
| Rear Wheel Tread | mm | 1831 |
| Minimum Ground Clearance | mm | 400 |
| Minimum Service Weight | kg | 6100 |
| Transmission | — | 12F + 4R |
| Travel Speed – Forward | km/h | 1.51–31.9 |
| Travel Speed – Reverse | km/h | 2.31–29.6 |
| Steering System | — | Fully Hydraulic, Front-Wheel Steering |
| Engine Model | — | LR6M3ZU22 |
| Rated Power | kW | 118 |
| Rated Speed | rpm | 2200 |
| Front Tire Size | — | 14.9-26 |
| Rear Tire Size | — | 18.4-38 |
| Maximum Lifting Force | kN | ≥28 |
| Hydraulic Control Modes | — | Height Adjustment, Floating Control |
| Maximum Traction Force | kN | 30 |
| PTO Type | — | Rear-Mounted, Semi-Independent or Independent |
| PTO Speed | rpm | 540 / 1000 |
| PTO Power | kW | 89.1 |
| Front Counterweight | kg | 600 |
| Rear Counterweight | kg | 360 |
