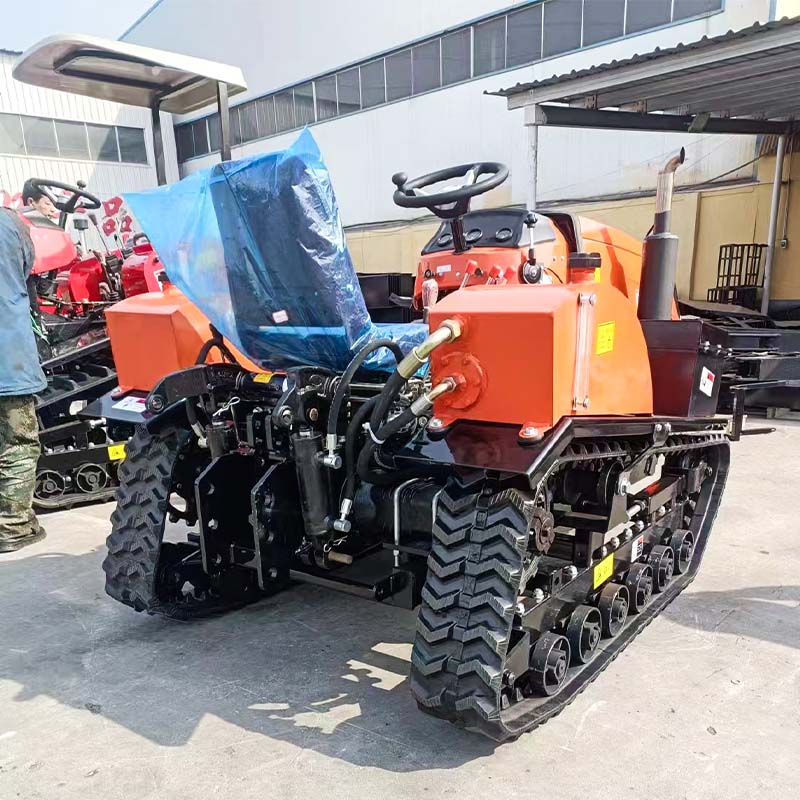

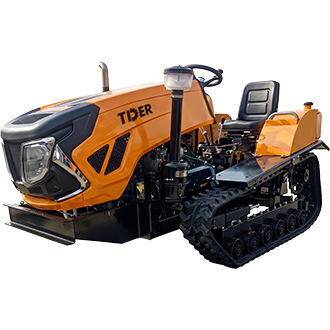

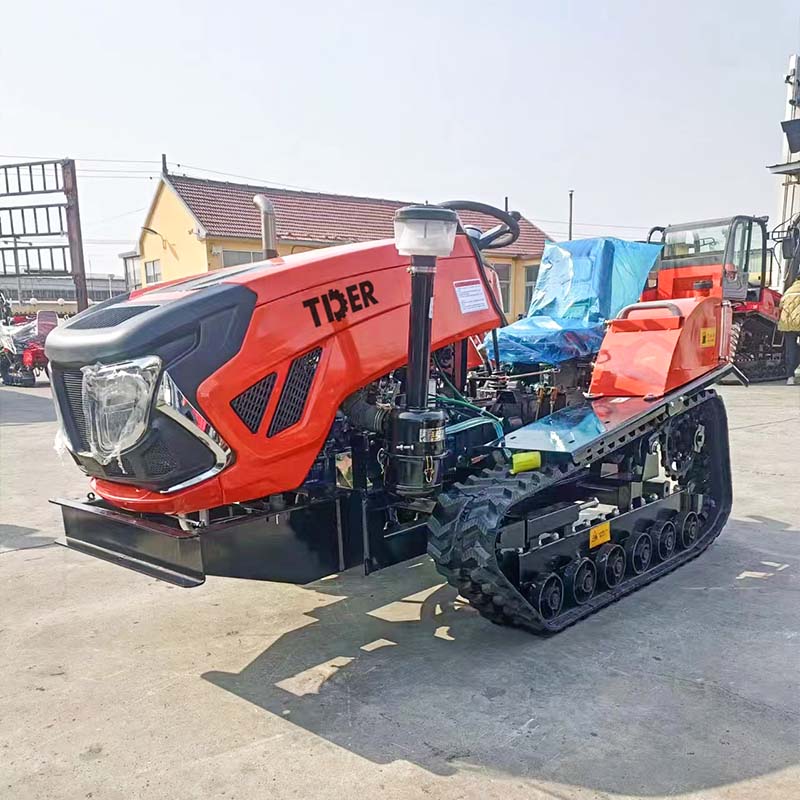

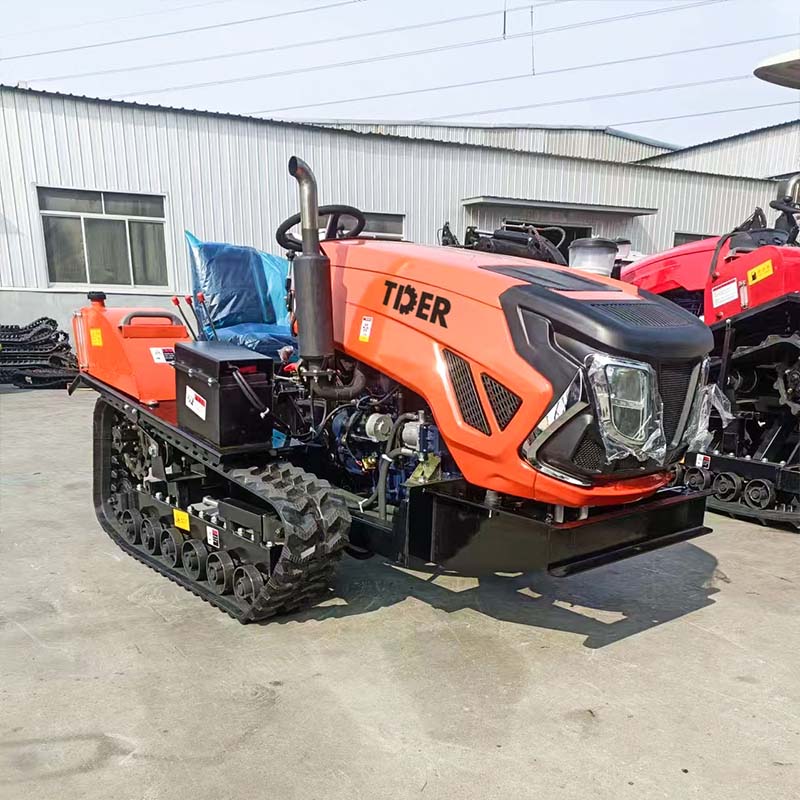

50HP Crawler Tractor
ZTT55
Características
Rubber Tracks Deliver Stable Traction Across Farm Terrain
Equipped with rubber tracks, the ZTT50 provides strong traction and a stable footprint for field operations. The tracked configuration is well suited to uneven farmland and soft or challenging ground, while the rubber track design offers a practical solution for agricultural applications where ground disturbance and maneuverability matter.
One Tractor For Multiple Farm Implements
The ZTT50 is equipped with a three-point hitch and can work with conventional wheel tractor implements, giving farmers greater flexibility when choosing attachments. Available implements include rotary tillers, weeders, ditchers, backfill tools, dozer blades, ridgers, seeders, two-bottom plows, loader buckets, digging buckets and grapples.
Compact Size With Up To 20 km/h Travel Speed
With an overall size of 2650 × 1450 × 1300 mm and a machine weight of approximately 1,600 kg, the ZTT50 combines a compact footprint with a maximum travel speed of 20 km/h. This makes it easier to move between fields while maintaining the maneuverability needed for smaller agricultural work areas.
Simple Operation With Flexible Cab Options
The ZTT50 is designed for straightforward operation, making it easier for operators to get familiar with the machine. Customers can choose between a standard cabin and a luxury cabin according to their working environment and comfort requirements, while different color options are also available for customized orders.
PRESUPUESTO
| Main Specifications | Machine Weight | kg | 1600 |
| Overall Length | mm | 2650 | |
| Overall Width | mm | 1450 | |
| Overall Height | mm | 1300 | |
| Undercarriage | Track Length | mm | 3888 |
| Track Width | mm | 230 | |
| Track Ground Contact Length | mm | 1400 | |
| Minimum Ground Clearance | mm | 200 | |
| Inner Track Distance | mm | 930 | |
| Outer Track Distance | mm | 1390 | |
| Engine | Engine Model | — | Weifang Series / Laidong 490 |
| Engine Power | HP / rpm | 50 / 2400 | |
| Air Filter | — | Paper Filter | |
| Fuel Consumption | L/acre | 12–18 | |
| Main Performance | Travel Speed | km/h | 20 |
| Operating Speed | acre/h | 5–10 | |
| Transmission | Transmission Mode | — | Shaft Drive |
| Rear Suspension Type | — | Three-Point Suspension | |
| Power Take-Off | Rear PTO Speed | r/min | 540 / 720 |
| Transmission | Gearbox | — | Patented Customized Gearbox (4 Forward / 1 Reverse, 5 Low & High-Speed Gears) |
| Optional Farming Implements | Optional Implements | — | Rotary Tiller / Cultivator / Trenching / Backfilling / Dozer Blade / Ridger / Seeder / Double Moldboard Plow / Front Loader Bucket / Excavator Bucket / Grapple, etc. |
*NOTA: Las especificaciones y configuraciones están sujetas a cambios debido a las continuas actualizaciones y mejoras del producto sin previo aviso. Toda la información es solo de referencia y algunas características son opcionales. Comuníquese con nuestro equipo de ventas internacionales para confirmar. Las especificaciones y configuraciones finales estarán sujetas al contrato oficial firmado por ambas partes.
